※ Imported PLC unit or SCM control, touch screen(optional), convenient opration, flexible settings and easy to learn
※ Adopting Mitsubishi servo motor to change moulds, or the hydraulic cylinder mould changing, accurately and steady.
※ Adopting high-accuracy linear slide rail, stable propulsion

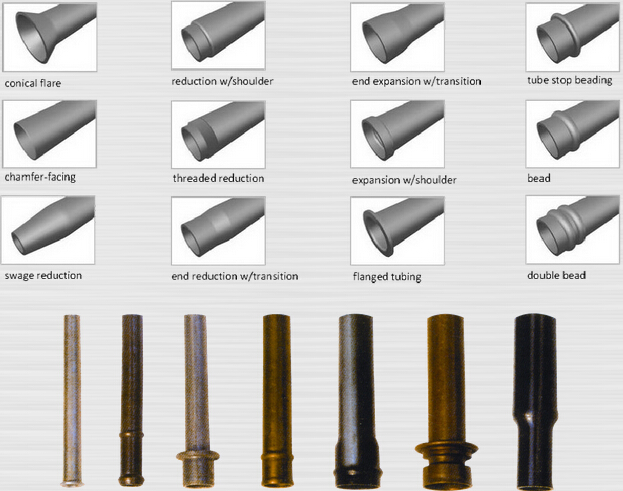

※ Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming
※ Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature
※ Adopting Mitsubishi servo motor to change moulds, or the hydraulic cylinder mould changing, accurately and steady.
※ Adopting high-accuracy linear slide rail, stable propulsion
※ Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming
※ Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature
| Parameters | TM40 | TM60 | |
|---|---|---|---|
| Max processing capability | Max Φ40mm | Max Φ60mm | |
| Max processing length | 120mm | 140mm | |
| Main cylinder max output | 7.5T | 12.5T | |
| Motor power | 4.0Kw | 5.5Kw | |
| Oil pressure | 12MPa | 12MPa | |
| Size |
|
2200×800×1500mm | |
| Gross weight | 1000 kg | 1250 kg |
